RW90 Copper Conductor

RW90

XLPE Copper Wire & Cable / 600V
  • Application
  • Specifications
  • Insulation: XLPE Type RW90

    Colur Coding: Black, White, Red, Blue, Green or other colours available upon request.

    File Listing No.: 300938


    Application:

    • For open wiring and raceways in dry or wet locations.
    • For exposed wiring where exposed to weather with sunlight resistant insulation.
    • Minimum recommended installation temperature minus 40°C (with suitable handling procedures).
    • Maximum conductor temperature 90°C
    • Approved for use with ceiling fixtures.

    Features:

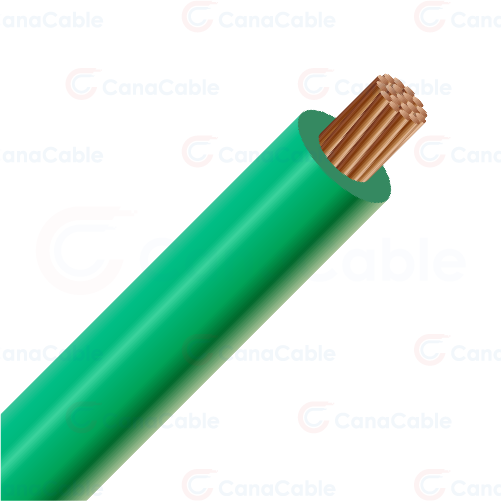

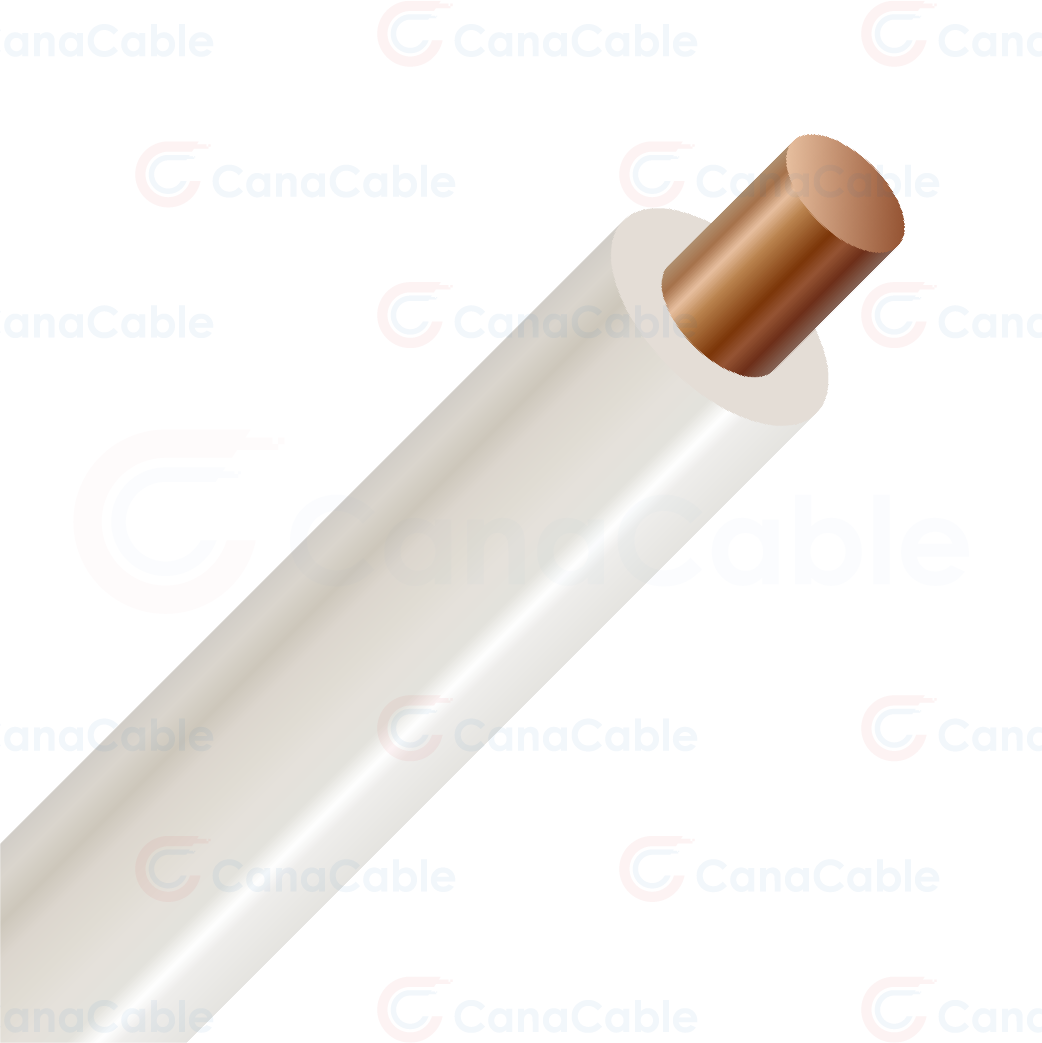

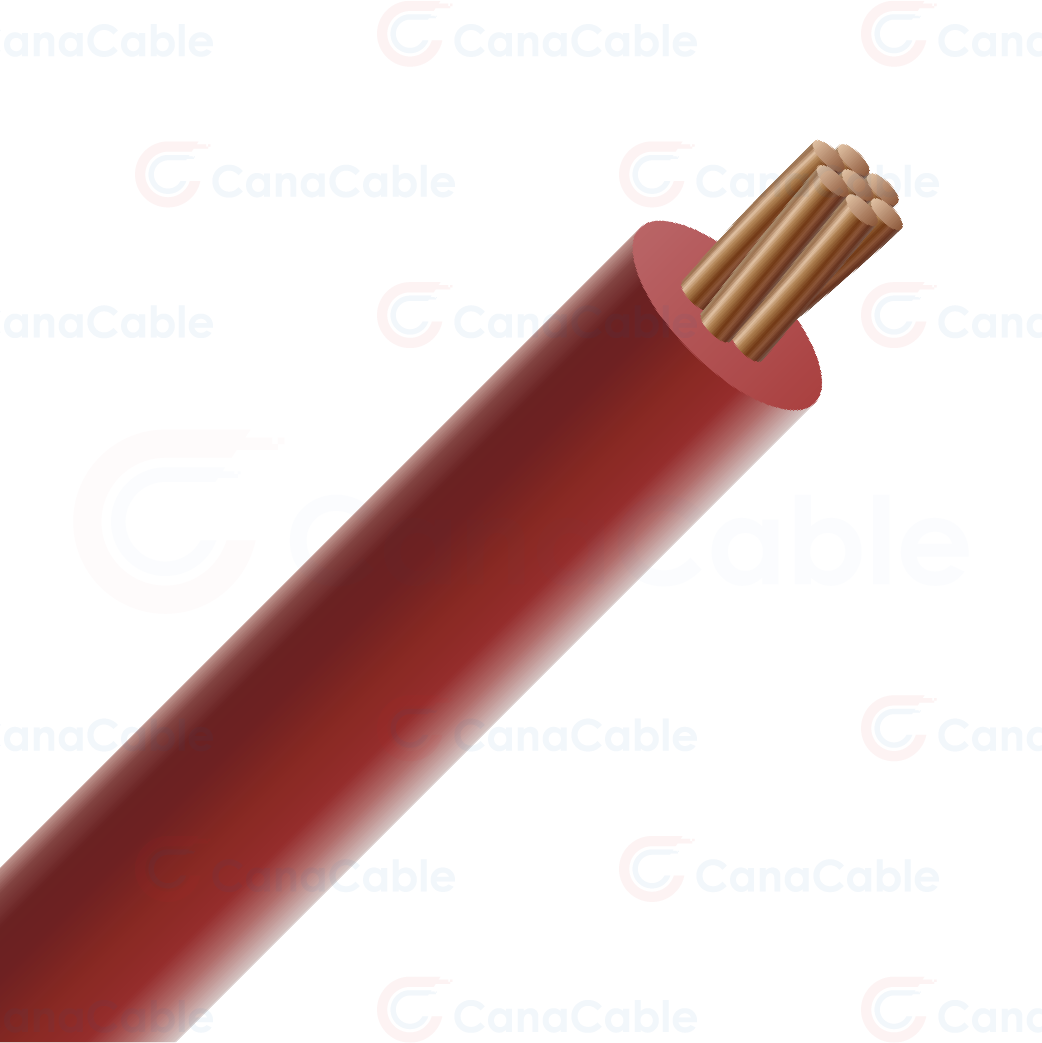

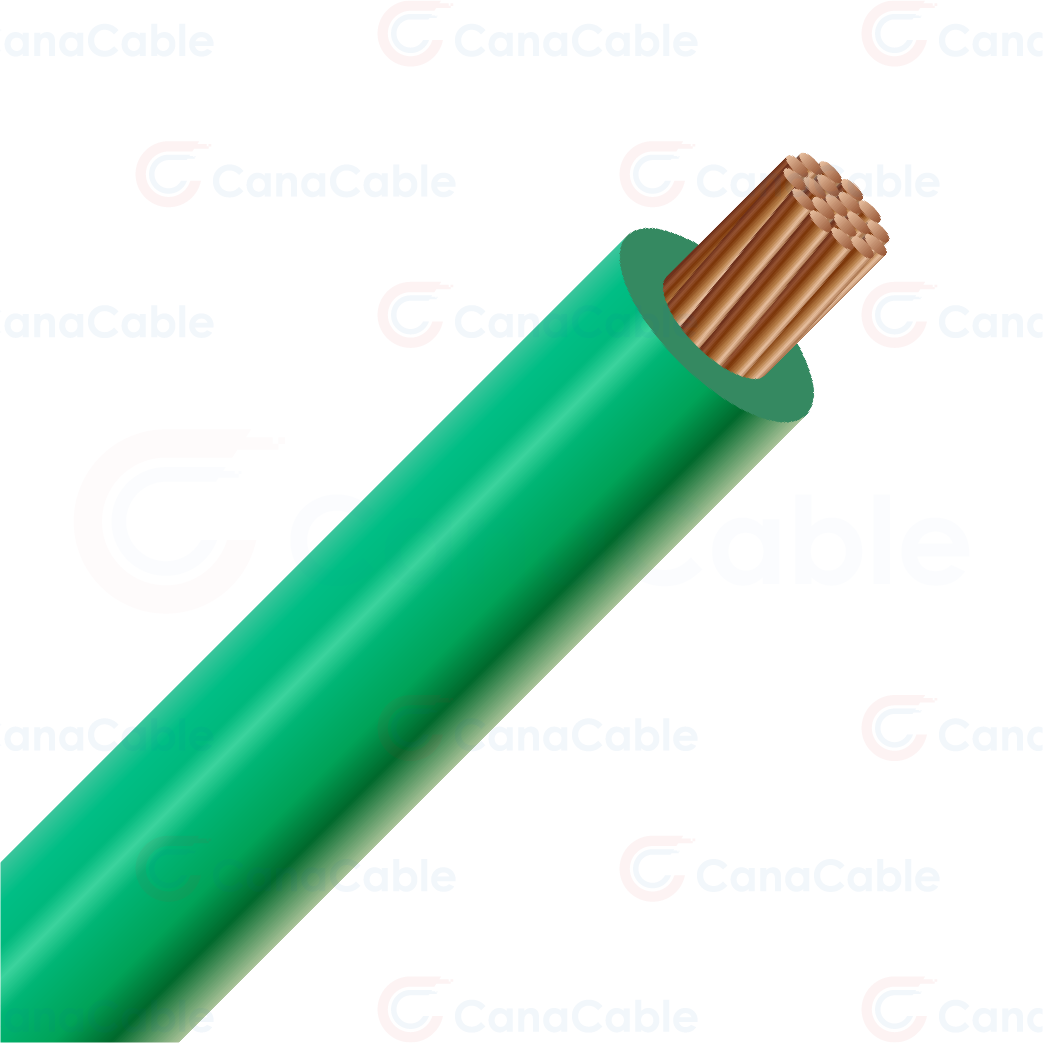

    Single copper conductor with low temperature moisture resisting, cross-linked polyethylene (XLPE) insulation. Rated 600 volts. LEAD FREE and RoHS compliant.

    Suitable flame retardant jacketed cables are available on request.


    Compliances: CSA C22.2 No. 38

                            UL44

                            CSA C22.2 No. 2556

                            Sunlight Resistant

                            RoHS
