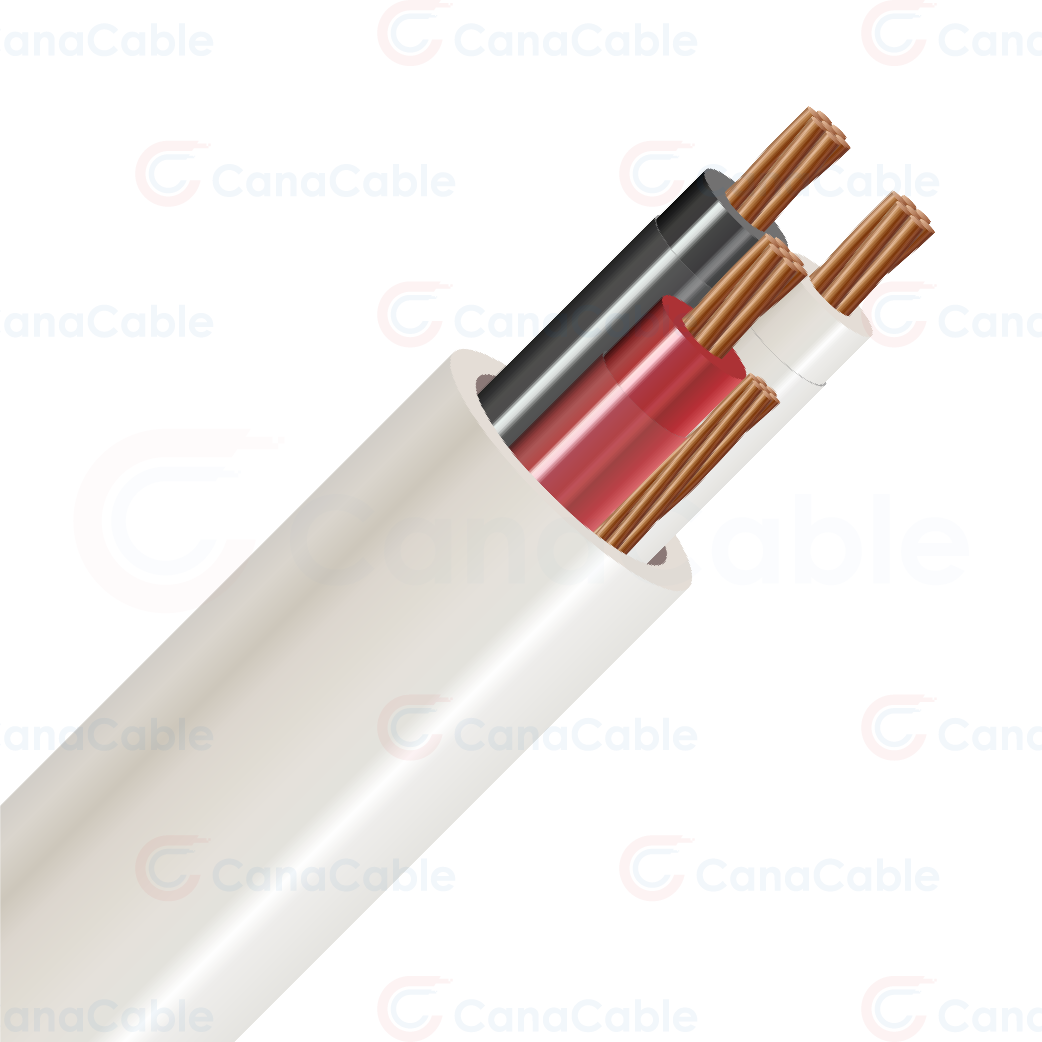

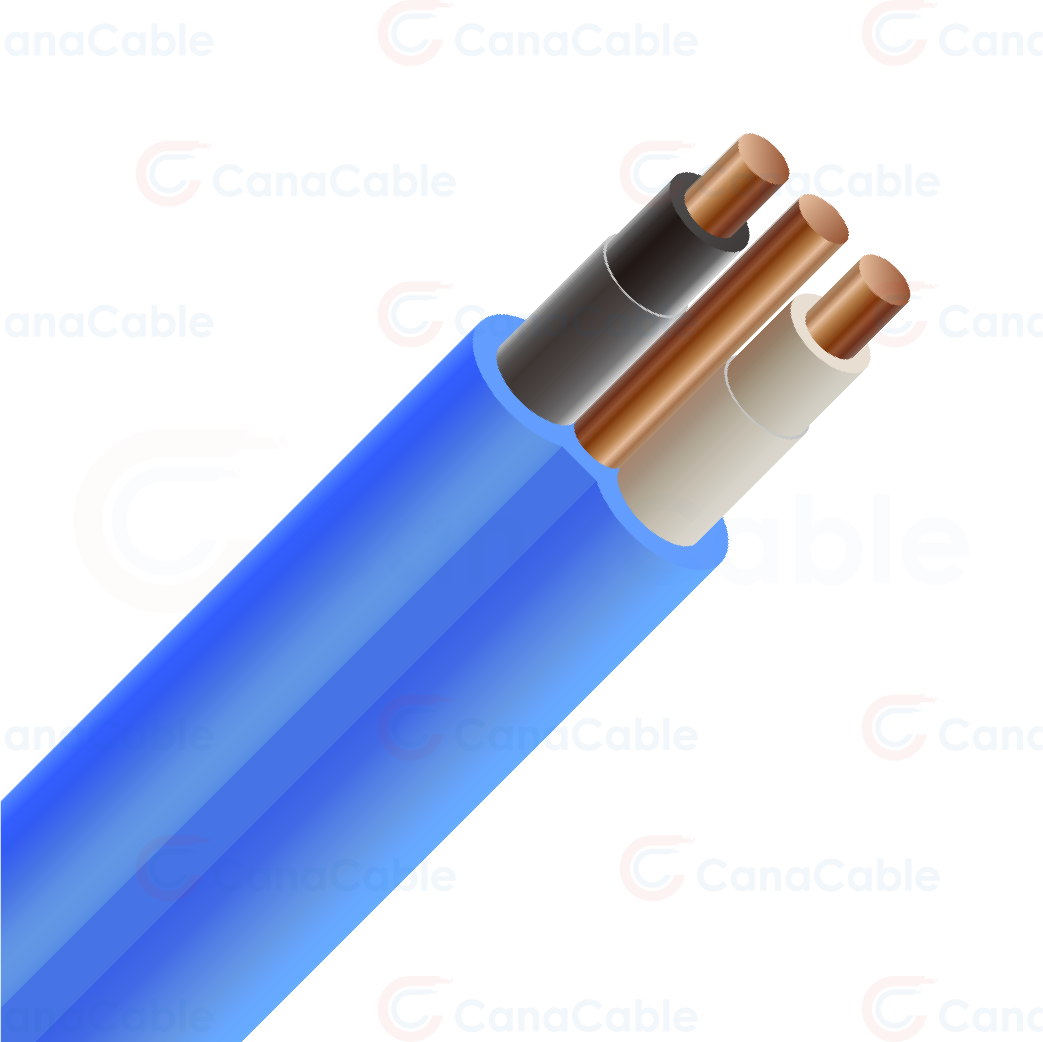

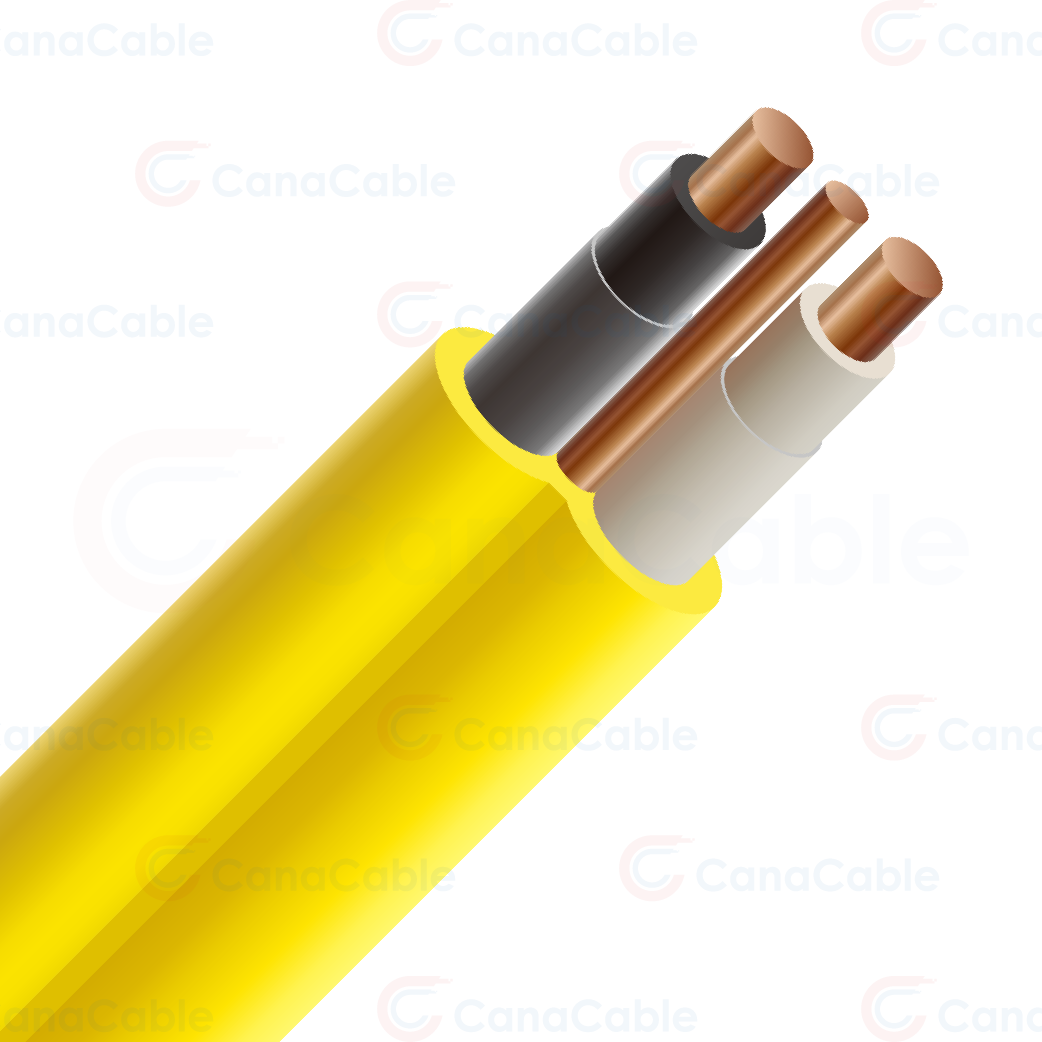

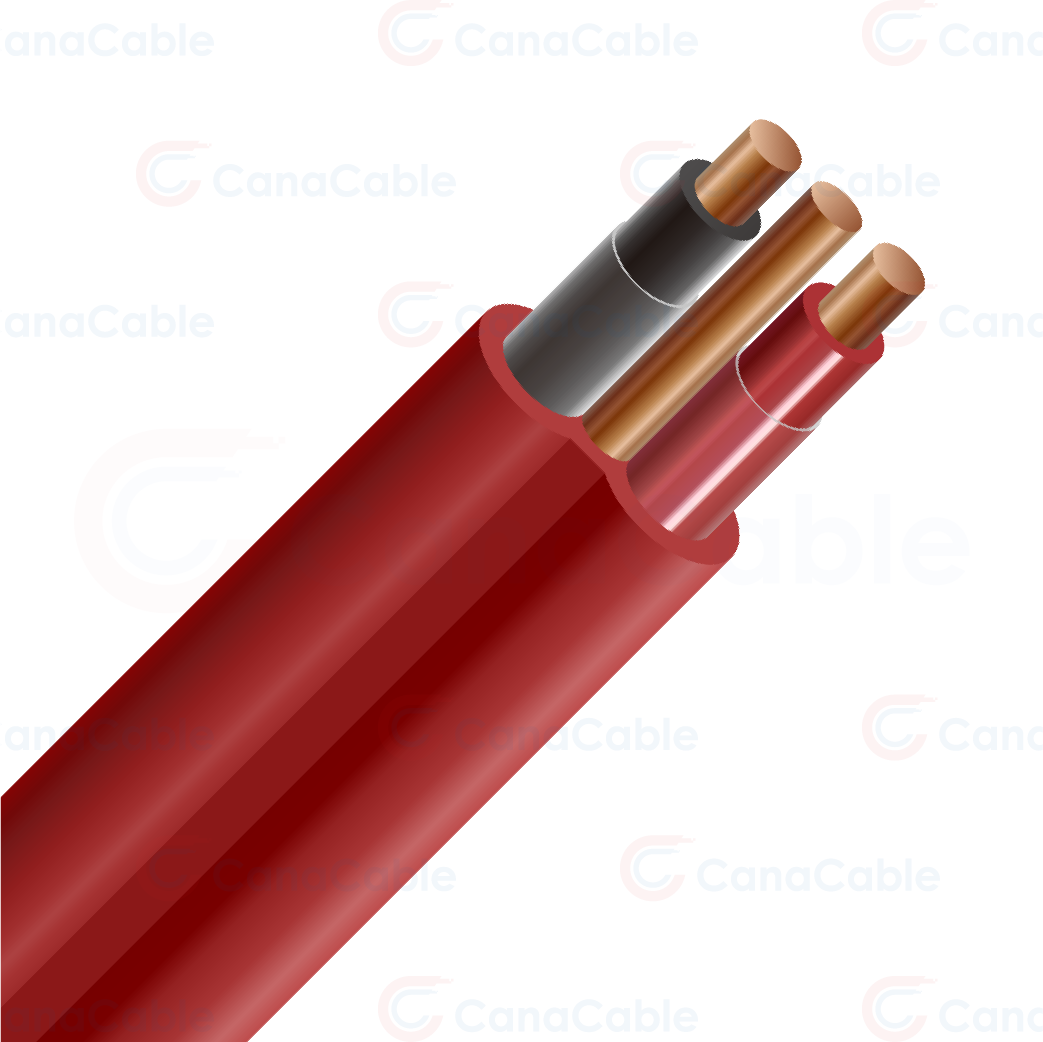

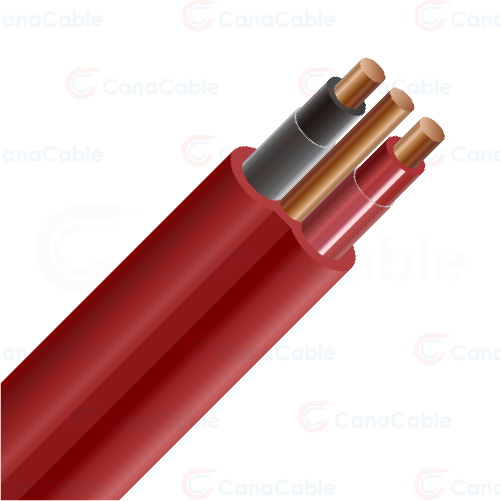

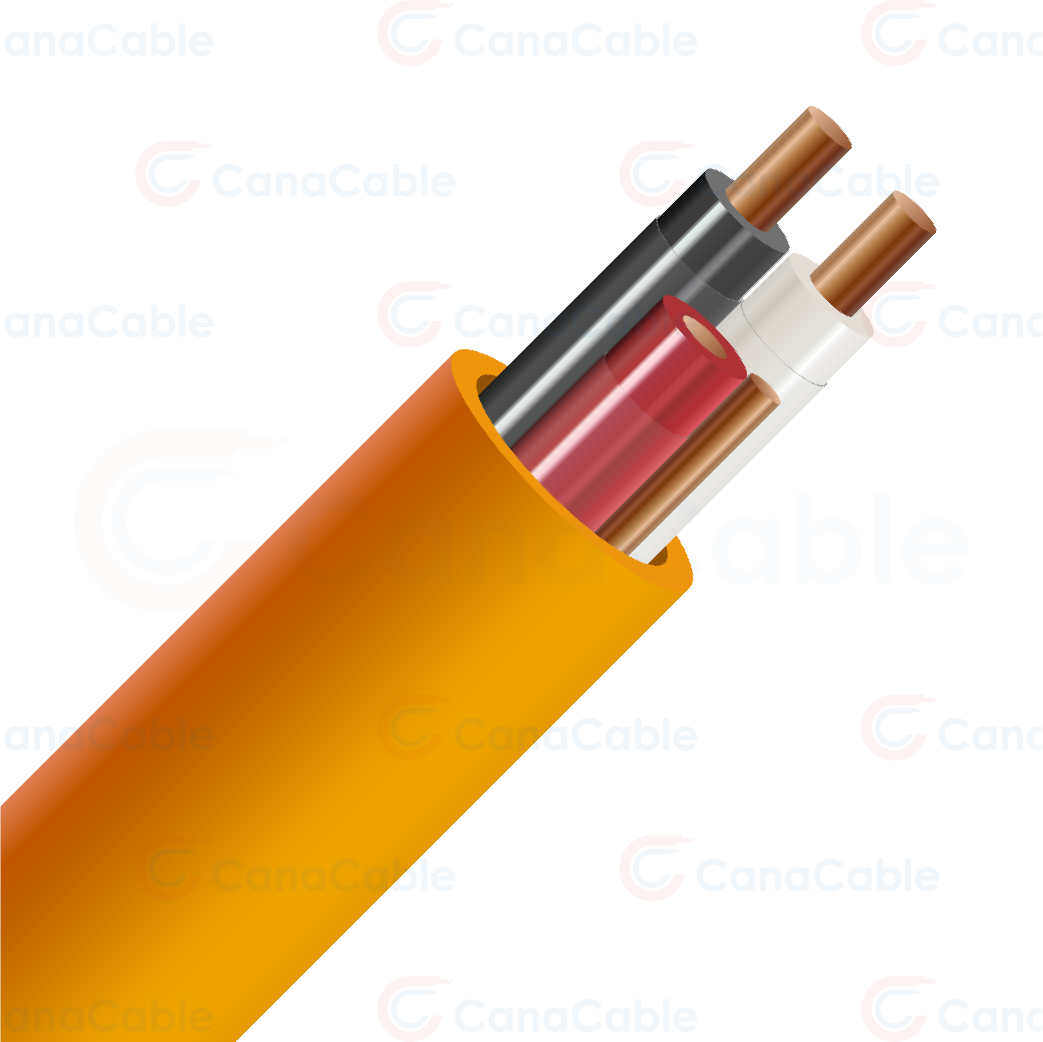

NMD90 Copper Wire & Cable

NMD90

Nylon Covering / PVC Insulation & Jacket / Copper Cable & Wire / 300V
  • Application
  • Specifications
  • Insulation: Nylon PVC Type T90

    Jacket: Polyvinyl Chloride (PVC)

    Colur Coding: Insulation - Black, White or Red

                           Jacket - White,Blue,Red,Orange or others upon request

    Bonding Conductor (Ground): One(1) bare solid or standed copper conductor

    File Listing No.: 300938


    Application:

    • For open or concealed wiring in dry or damp locations where not exposed to mechanical injury.
    • Maximum conductor temperature 90°C.
    • Approved for use with ceiling fixtures.
    • Minimum recommended handling temperature minus 25°C for 2 conductor cables and minus 10°C for 3  conductor cables (with suitable handling procedures).


    Features:

    Two or three copper conductors with 90ºC PVC and nylon insulation.

    Bare bonding wire and overall jacket of moisture resistant and flame retardant PVC.

    Rated 300 volts. LEAD FREE and RoHS compliant


    Compliances: CSA C22.2 No. 48

                           CSA C22.2 No. 75

                           CSA C22.2 No. 2556

                           FT1 Vertical Propagation Flame Test

                           RoHS
