Insulation: Nylon PVC Type T90
Jacket: Polyvinyl Chloride (PVC)
Colur Coding: Insulation - Black, White or Red
Jacket - Grey or others upon request
Bonding Conductor (Ground): One(1) bare standed Aluminium conductor
File Listing No.: 300938
Application:
- Be used for both exposed work in dry locations or concealed work in dry or damp locations.
- Maximum allowable conductor temperature is 90°C.
- The minimum recommended installation temperature is minus 25°C.
- The maximum voltage rating for all intended applications is 300 volts.
Features:

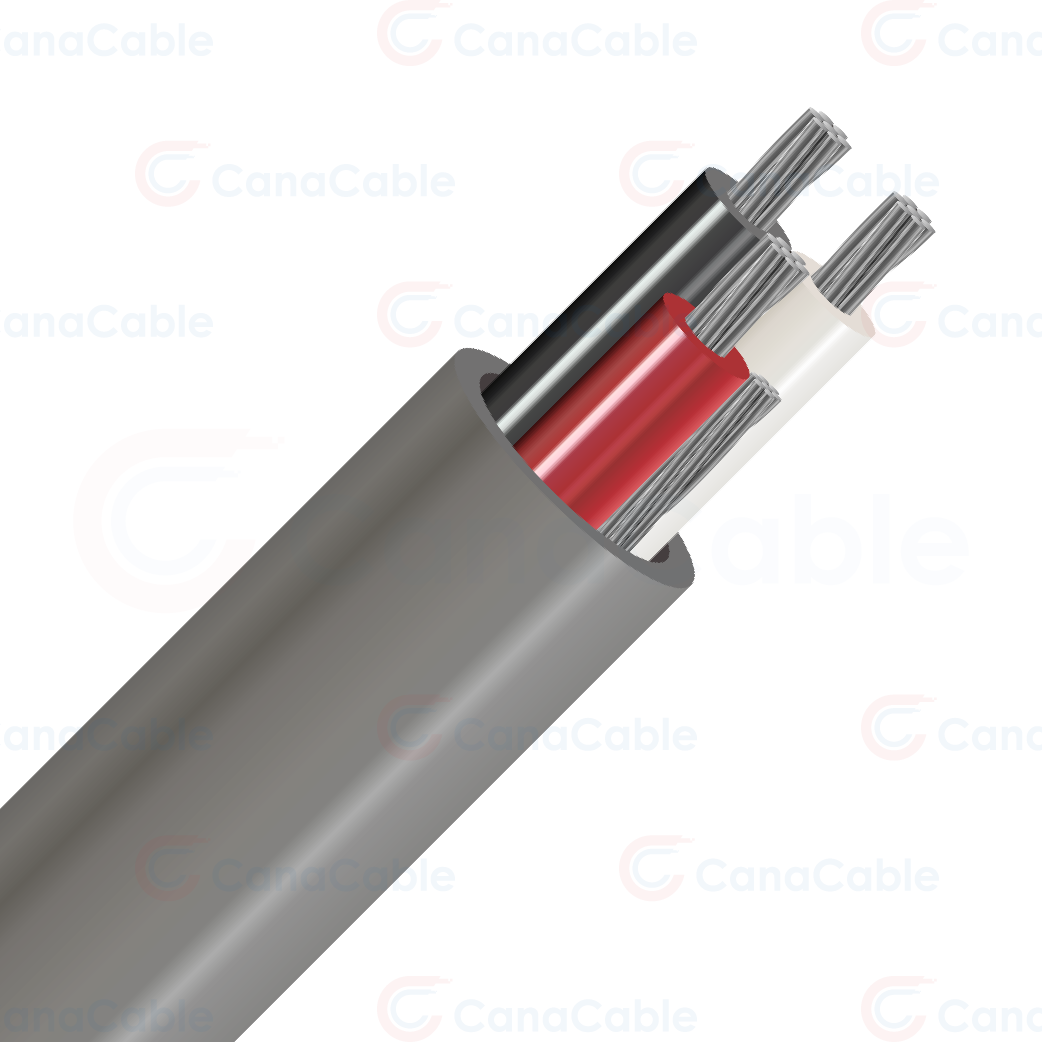

Three Aluminium conductors with 90ºC PVC and nylon insulation.
Bare bonding wire and overall jacket of moisture resistant and flame retardant PVC.
Rated 300 volts. LEAD FREE and RoHS compliant.
Compliances: CSA C22.2 No. 48
CSA C22.2 No. 75
CSA C22.2 No. 2556
FT1 Vertical Propagation Flame Test
RoHS
