Insulation: 90°C-rated cross-linked polyethylene (XLPE, Type RW90)

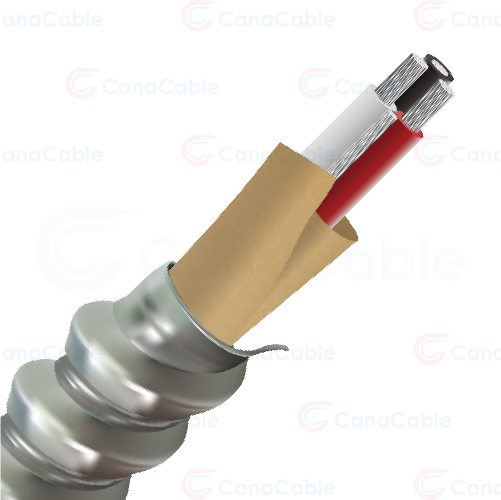

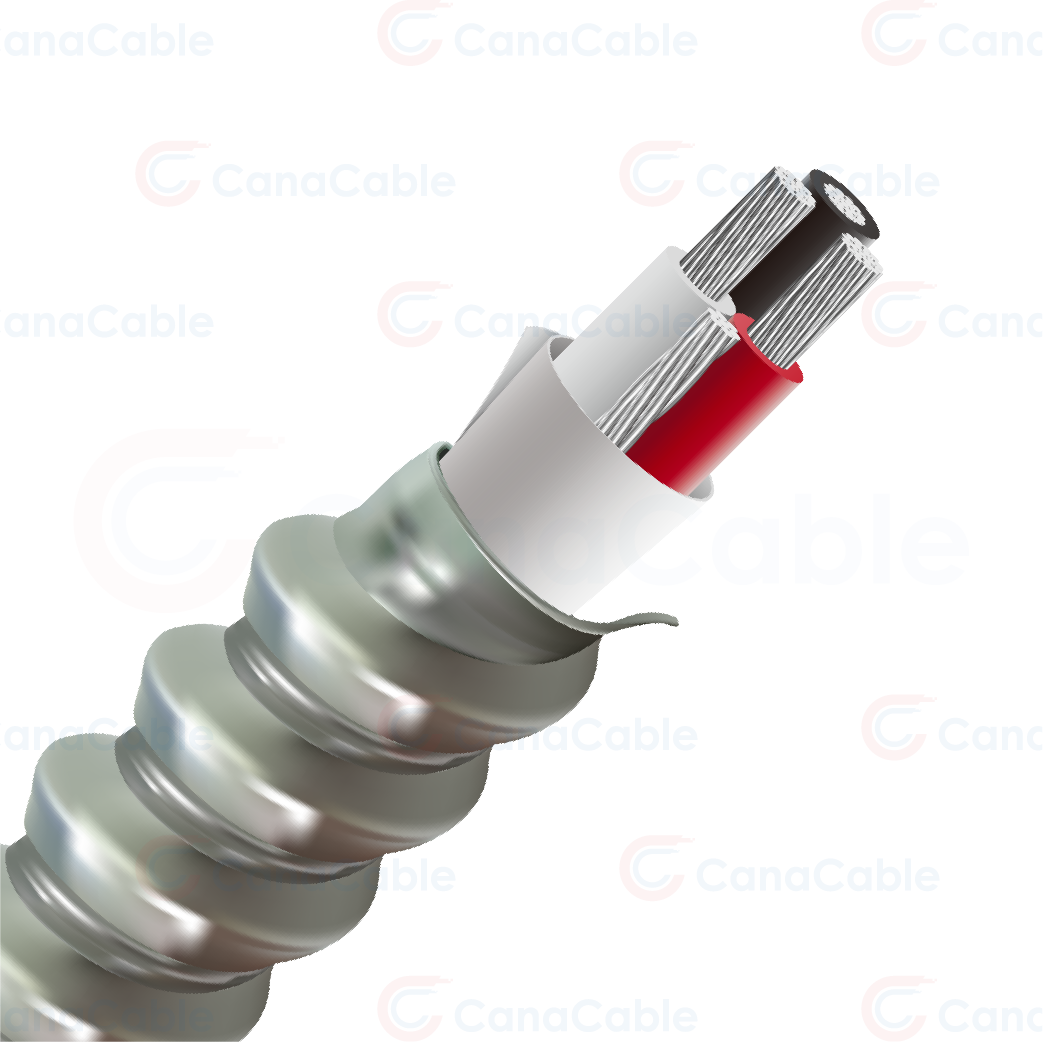

Armor: Interlocked aluminum armor
Color Coding: Black, White, Red, Blue (phase identification)
Bonding Conductor: One stranded bare AA-8000 Series aluminum alloy (ACM)
File Listing No.: 300938
Applications:
For use in raceways, ventilated, non-ventilated and ladder-type cable trays.
For dry, damp or wet locations, in ceiling air-handling plenums, direct burial,
exposed and concealed wiring.
Approved for all Hazardous Locations (HL) as per CE Code Part I 2024 Section 18,
when installed with approved connectors.
Features:
Rated at 90°C dry and wet location
Excellent crush resistance
Provides long service life
Cost effective alternative to installations in conduit
Meets cold bend and impact tests at (-40°C)
Compliances:
CSA Standard C22.2 No. 51
CSA Standard C22.2 No. 38
CSA Standard C22.2 No. 2556
ST1-FT4 Rating
RoHS compliant
