Insulation: Polyvinyl Chloride (PVC)

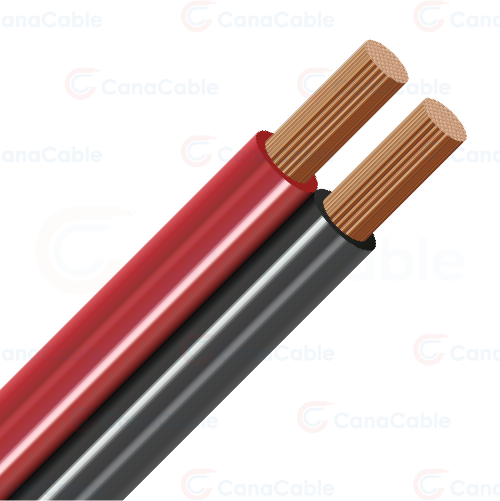

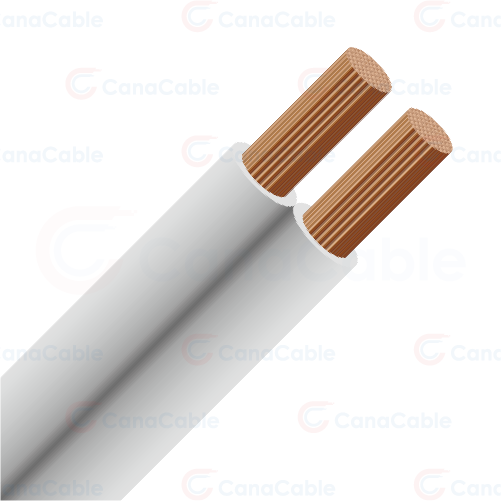

Colour Coding: Black+Red, White or others upon request.
CCC File No.: 2010010105413710
Applications: This type is mainly used for household lighting, electrical appliances, instruments, broadcasting and audio connection control wires, fire protection wires, etc.
Features:
Using high-purity oxygen free copper wire then twisted together, with strong antioxidant ability, softness, and low electrical resistivity.
With national standard 70 degree PVC material, great at tensile strength(>15N/mm²), tensile elongation(>250%), anti-aging resistant,no cracking at low temperature.
Sufficient conductor diameter, better current carrying capacity.
The insulated core conductors are placed parallel and produced by an 8-shaped mould, making it easy to separate the insulation materials between the conductors.
Advanced spray printing technology for content printing, number of meters and cutting position, making it easy for customers to retail the wire by meter, ensuring sufficient length of each roll.
Compliances:
JB/T8734.3-2016
